Generating code documentation using Ghost Doc Enterprise

Gordon Beeming
Gordon Beeming
Visual StudioC#Ghost DocAutomated Builds
On this page4 sections ▾

I've recently started catching up with all the blogs that I've wanted to write and have had flagged to write for a long time. This one I have had flagged since 26 January 2016.

I like building .net libraries and use Ghost Doc all the time to help me generate my documentation.

#Using Ghost Doc

Before just jumping in let's see a little about what Ghost Doc is. First of all Ghost Doc as a lot of features and I would encourage you to visit their products page to see all of them.

Using the default shortcut of ctrl + shift + D you can add a basic comment to your code that generally only needs a little repair to make it properly human readable. Take this very basic add method for example

Add method (before docs)
public static long Add(long number1, long number2)
{
    return number1 + number2;
}

Using the Ghost Doc shortcut I can generate some basic docs that would look like this

Add method (with docs)
/// <summary>
/// Adds the specified number1.
/// </summary>
/// <param name="number1">The number1.</param>
/// <param name="number2">The number2.</param>
/// <returns>System.Int64.</returns>
public static long Add(long number1, long number2)
{
    return number1 + number2;
}

As you can see the default comments are very readable so in this case I'll use that comment as is 🙂.

#Spell Check

Ghost doc also installs with a spell checker which I love because my spelling is terrible at the best of times. Other spell checkers that I've used in the past in Visual Studio only check obvious things like string literals but Ghost Doc checks a whole lot more for example in variable names

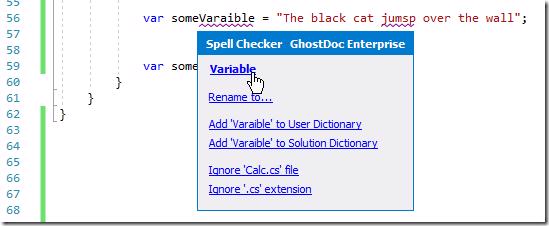

Ghost Doc spell check suggesting a correction for a typo in a variable name
Ghost Doc spell checker identifying a typo in a variable name and suggesting a correction.

Note how it splits the casing on the variable to know where each word is and you can correct your spelling with a single click on the mouse 🙂. You can configure what you want the spell check to work for in the options menu

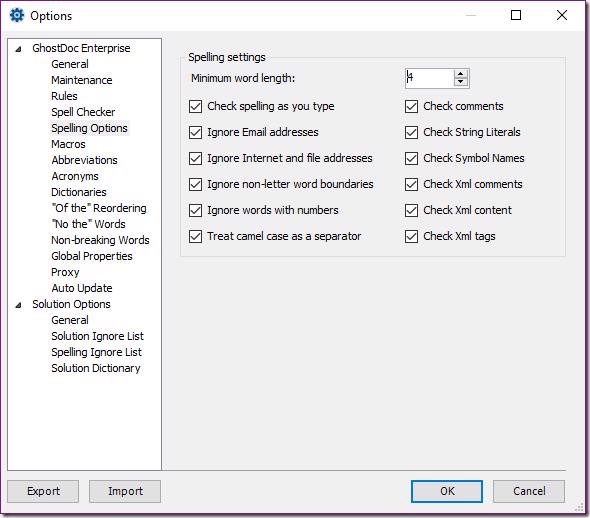

Ghost Doc spell checker options in Visual Studio
Visual Studio options dialog showing configurable spell check settings for Ghost Doc.

With this extension installed opening other peoples code you very quickly notice typos that you would normally not 🙂.

#Generating documentation with Ghost Doc

So this posts primary focus is on how to generate documentation with Ghost Doc so let's see how that works. First off you'll need to have Ghost Doc installed obviously 😜. Next open a cmd window and change directory to the directory where you have a solution with existing xml comments

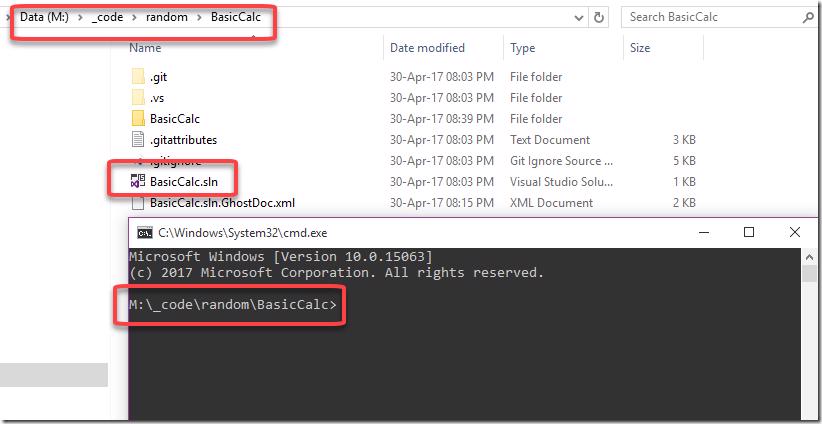

Command prompt window showing the directory of the solution with XML comments
Command prompt window navigated to the solution directory containing XML comments.

Now all you have to do is run the cmd tool, passing in the solution file and a couple of other parameters

Terminal
"C:\Program Files (x86)\SubMain\GhostDoc Enterprise\SubMain.GhostDoc.Cmd.exe" /solution:"BasicCalc.sln" /helpConfiguration:"HelpFile" /projectconfiguration:"Debug" /consoledetailed

This will generate some output into the console because we specified the /consoledetailed flag

Ghost Doc output
Microsoft Windows [Version 10.0.15063]
(c) 2017 Microsoft Corporation. All rights reserved.

M:\_code\random\BasicCalc>"C:\Program Files (x86)\SubMain\GhostDoc Enterprise\SubMain.GhostDoc.Cmd.exe" /solution:"BasicCalc.sln" /helpConfiguration:"HelpFile" /projectconfiguration:"Debug" /consoledetailed
SubMain.GhostDoc.Cmd v5.5.17070
Copyright (c) 2002-2017 SubMain

User: Gordon Beeming
Target framework: 2.0.50727.8784

  ------ Parsing started: Project: BasicCalc ------

  Parsing...



  ---------------------- Done ----------------------

  Parsing complete -- 0 errors


  Loading references...



  Building Help Documentation...

  Collecting member comments for "BasicCalc" project...

  Building member comments file for "BasicCalc" project...

  Building topic file for "BasicCalc" project...

  Building reflection file for "BasicCalc" project...

  Building solution topic file...

  Building solution reflection file...

  Building solution TOC file...

  Building preview files...

Info: CopyFromFileComponent: Instantiating component.
Info: CopyFromFileComponent: Loading data file 'Theme\Transforms\skeleton.xml'.
Info: CopyFromIndexComponent: Instantiating component.
Info: CopyFromIndexComponent: Searching for files that match 'reflection.xml'.
Info: CopyFromIndexComponent: Indexed 8 elements in 1 files.
Info: CopyFromIndexComponent: Loaded 0 copy components.
Info: CopyFromIndexComponent: Instantiating component.
Info: CopyFromIndexComponent: Loaded 0 copy components.
Info: ForEachComponent: Instantiating component.
Info: ForEachComponent: Loading subcomponents.
Info: CopyFromIndexComponent: Instantiating component.
Info: CopyFromIndexComponent: Loaded 0 copy components.
Info: ForEachComponent: Loaded 1 subcomponents.
Info: ForEachComponent: Instantiating component.
Info: ForEachComponent: Loading subcomponents.
Info: CopyFromIndexComponent: Instantiating component.
Info: CopyFromIndexComponent: Loaded 0 copy components.
Info: ForEachComponent: Loaded 1 subcomponents.
Info: ForEachComponent: Instantiating component.
Info: ForEachComponent: Loading subcomponents.
Info: CopyFromIndexComponent: Instantiating component.
Info: CopyFromIndexComponent: Loaded 0 copy components.
Info: ForEachComponent: Loaded 1 subcomponents.
Info: ForEachComponent: Instantiating component.
Info: ForEachComponent: Loading subcomponents.
Info: CopyFromIndexComponent: Instantiating component.
Info: CopyFromIndexComponent: Loaded 0 copy components.
Info: ForEachComponent: Loaded 1 subcomponents.
Info: ForEachComponent: Instantiating component.
Info: ForEachComponent: Loading subcomponents.
Info: CopyFromIndexComponent: Instantiating component.
Info: CopyFromIndexComponent: Loaded 0 copy components.
Info: ForEachComponent: Loaded 1 subcomponents.
Info: ForEachComponent: Instantiating component.
Info: ForEachComponent: Loading subcomponents.
Info: CopyFromIndexComponent: Instantiating component.
Info: CopyFromIndexComponent: Loaded 0 copy components.
Info: ForEachComponent: Loaded 1 subcomponents.
Info: IfThenComponent: Instantiating component.
Info: SyntaxComponent: Instantiating component.
Info: SyntaxComponent: Loaded 3 syntax generators.
Info: CopyFromIndexComponent: Instantiating component.
Info: CopyFromIndexComponent: Searching for files that match 'BasicCalc_comments.xml'.
Info: CopyFromIndexComponent: Searching for files that match '*.xml'.
Info: CopyFromIndexComponent: Indexed 148486 elements in 121 files.
Info: CopyFromIndexComponent: Loaded 0 copy components.
Info: ForEachComponent: Instantiating component.
Info: ForEachComponent: Loading subcomponents.
Info: IfThenComponent: Instantiating component.
Info: CopyFromIndexComponent: Instantiating component.
Info: CopyFromIndexComponent: Loaded 0 copy components.
Info: CopyFromIndexComponent: Instantiating component.
Info: CopyFromIndexComponent: Loaded 0 copy components.
Info: ForEachComponent: Loaded 2 subcomponents.
Info: CopyFromIndexComponent: Instantiating component.
Info: CopyFromIndexComponent: Loaded 0 copy components.
Info: ShowMissingComponent: Instantiating component.
Info: ShowMissingComponent:
    [Sandcastle Help File Builder, version 1.9.3.0]
    Show Missing Documentation Component. Copyright c 2006-2011, Eric Woodruff, All Rights Reserved
    http://SHFB.CodePlex.com
Info: ShowMissingComponent:   All Show Missing options are disabled.  The component will do nothing.
Info: VersionInfoComponent: Instantiating component.
Info: VersionInfoComponent:
    [Sandcastle Help File Builder, version 1.9.3.0]
    Version Information Component. Copyright c 2006-2011, Eric Woodruff, All Rights Reserved
    http://SHFB.CodePlex.com
Info: CodeBlockComponent: Instantiating component.
Info: CodeBlockComponent:
    [Sandcastle Help File Builder, version 1.9.3.0]
    Code Block Component. Copyright c 2006-2011, Eric Woodruff, All Rights Reserved.
    Portions copyright (c) 2003, Jonathan de Halleux, All rights reserved.
    http://SHFB.CodePlex.com
Info: TransformComponent: Instantiating component.
Info: PostTransformComponent: Instantiating component.
Info: PostTransformComponent:
    [Sandcastle Help File Builder, version 1.9.3.0]
    Post-Transform Component. Copyright c 2006-2011, Eric Woodruff, All Rights Reserved
    http://SHFB.CodePlex.com
Info: MultiFormatOutputComponent: Instantiating component.
Info: MultiFormatOutputComponent:
    [Sandcastle Help File Builder, version 1.9.3.0]
    Multi-Format Output Component. Copyright c 2006-2011, Eric Woodruff, All Rights Reserved
    http://SHFB.CodePlex.com
Info: MultiFormatOutputComponent: Loading components for HtmlHelp1 format
Info: SharedContentComponent: Instantiating component.
Info: SharedContentComponent: Searching for files that match 'Theme\content\shared_content.xml'.
Info: SharedContentComponent: Loading shared content file 'C:\Users\Gordon Beeming\AppData\Local\Temp\SubMain.GhostDoc`1\Theme\content\shared_content.xml'.
Info: SharedContentComponent: Overriding shared content item 'fsharp' with value in file 'C:\Users\Gordon Beeming\AppData\Local\Temp\SubMain.GhostDoc`1\Theme\content\shared_content.xml'.
Info: SharedContentComponent: Found 1 files in Theme\content\shared_content.xml.
Info: SharedContentComponent: Searching for files that match 'Theme\content\reference_content.xml'.
Info: SharedContentComponent: Loading shared content file 'C:\Users\Gordon Beeming\AppData\Local\Temp\SubMain.GhostDoc`1\Theme\content\reference_content.xml'.
Info: SharedContentComponent: Found 1 files in Theme\content\reference_content.xml.
Info: SharedContentComponent: Searching for files that match 'shared\content\syntax_content.xml'.
Info: SharedContentComponent: Loading shared content file 'C:\Users\Gordon Beeming\AppData\Local\Temp\SubMain.GhostDoc`1\shared\content\syntax_content.xml'.
Info: SharedContentComponent: Found 1 files in shared\content\syntax_content.xml.
Info: SharedContentComponent: Searching for files that match 'Theme\content\feedback_content.xml'.
Info: SharedContentComponent: Loading shared content file 'C:\Users\Gordon Beeming\AppData\Local\Temp\SubMain.GhostDoc`1\Theme\content\feedBack_content.xml'.
Info: SharedContentComponent: Found 1 files in Theme\content\feedback_content.xml.
Info: SharedContentComponent: Searching for files that match 'SharedBuilderContent.xml'.
Info: SharedContentComponent: Loading shared content file 'C:\Users\Gordon Beeming\AppData\Local\Temp\SubMain.GhostDoc`1\SharedBuilderContent.xml'.
Info: SharedContentComponent: Overriding shared content item 'roottopictitle' with value in file 'C:\Users\Gordon Beeming\AppData\Local\Temp\SubMain.GhostDoc`1\SharedBuilderContent.xml'.
Info: SharedContentComponent: Overriding shared content item 'rootlink' with value in file 'C:\Users\Gordon Beeming\AppData\Local\Temp\SubMain.GhostDoc`1\SharedBuilderContent.xml'.
Info: SharedContentComponent: Overriding shared content item 'runningheadertext' with value in file 'C:\Users\Gordon Beeming\AppData\Local\Temp\SubMain.GhostDoc`1\SharedBuilderContent.xml'.
Info: SharedContentComponent: Overriding shared content item 'locationinformation' with value in file 'C:\Users\Gordon Beeming\AppData\Local\Temp\SubMain.GhostDoc`1\SharedBuilderContent.xml'.
Info: SharedContentComponent: Overriding shared content item 'assemblynameandmodule' with value in file 'C:\Users\Gordon Beeming\AppData\Local\Temp\SubMain.GhostDoc`1\SharedBuilderContent.xml'.
Info: SharedContentComponent: Overriding shared content item 'copycode' with value in file 'C:\Users\Gordon Beeming\AppData\Local\Temp\SubMain.GhostDoc`1\SharedBuilderContent.xml'.
Info: SharedContentComponent: Overriding shared content item 'locale' with value in file 'C:\Users\Gordon Beeming\AppData\Local\Temp\SubMain.GhostDoc`1\SharedBuilderContent.xml'.
Info: SharedContentComponent: Found 1 files in SharedBuilderContent.xml.
Info: SharedContentComponent: Searching for files that match 'PresentationStyleBuilderContent.xml'.
Info: SharedContentComponent: Loading shared content file 'C:\Users\Gordon Beeming\AppData\Local\Temp\SubMain.GhostDoc`1\PresentationStyleBuilderContent.xml'.
Info: SharedContentComponent: Overriding shared content item 'header' with value in file 'C:\Users\Gordon Beeming\AppData\Local\Temp\SubMain.GhostDoc`1\PresentationStyleBuilderContent.xml'.
Info: SharedContentComponent: Overriding shared content item 'footer' with value in file 'C:\Users\Gordon Beeming\AppData\Local\Temp\SubMain.GhostDoc`1\PresentationStyleBuilderContent.xml'.
Info: SharedContentComponent: Overriding shared content item 'fb_alias' with value in file 'C:\Users\Gordon Beeming\AppData\Local\Temp\SubMain.GhostDoc`1\PresentationStyleBuilderContent.xml'.
Info: SharedContentComponent: Overriding shared content item 'fb_product' with value in file 'C:\Users\Gordon Beeming\AppData\Local\Temp\SubMain.GhostDoc`1\PresentationStyleBuilderContent.xml'.
Info: SharedContentComponent: Overriding shared content item 'fb_body' with value in file 'C:\Users\Gordon Beeming\AppData\Local\Temp\SubMain.GhostDoc`1\PresentationStyleBuilderContent.xml'.
Info: SharedContentComponent: Overriding shared content item 'fb_send' with value in file 'C:\Users\Gordon Beeming\AppData\Local\Temp\SubMain.GhostDoc`1\PresentationStyleBuilderContent.xml'.
Info: SharedContentComponent: Overriding shared content item 'fb_headerfeedback' with value in file 'C:\Users\Gordon Beeming\AppData\Local\Temp\SubMain.GhostDoc`1\PresentationStyleBuilderContent.xml'.
Info: SharedContentComponent: Overriding shared content item 'feedback_alias' with value in file 'C:\Users\Gordon Beeming\AppData\Local\Temp\SubMain.GhostDoc`1\PresentationStyleBuilderContent.xml'.
Info: SharedContentComponent: Overriding shared content item 'feedback_product' with value in file 'C:\Users\Gordon Beeming\AppData\Local\Temp\SubMain.GhostDoc`1\PresentationStyleBuilderContent.xml'.
Info: SharedContentComponent: Overriding shared content item 'feedback_body' with value in file 'C:\Users\Gordon Beeming\AppData\Local\Temp\SubMain.GhostDoc`1\PresentationStyleBuilderContent.xml'.
Info: SharedContentComponent: Found 1 files in PresentationStyleBuilderContent.xml.
Info: SharedContentComponent: Loaded 641 shared content items.
Info: ResolveReferenceLinksComponent2: Instantiating component.
Info: ResolveReferenceLinksComponent2: Searching directory 'C:\Users\Gordon Beeming\AppData\Local\Temp\SubMain.GhostDoc`1' for targets files of the form 'reflection.xml'.
Info: ResolveReferenceLinksComponent2: Loaded 47172 reference targets.
Info: SaveComponent: Instantiating component.
Info: BuildAssembler: Building topic N:BasicCalc
Info: BuildAssembler: Building topic T:BasicCalc.Calc
Info: BuildAssembler: Building topic AllMembers.T:BasicCalc.Calc
Info: BuildAssembler: Building topic Methods.T:BasicCalc.Calc
Info: BuildAssembler: Building topic M:BasicCalc.Calc.Add(System.Int64,System.Int64)
Info: BuildAssembler: Building topic M:BasicCalc.Calc.Minus(System.Int64,System.Int64)
Info: BuildAssembler: Building topic M:BasicCalc.Calc.Multiple(System.Int64,System.Int64)
Info: BuildAssembler: Building topic M:BasicCalc.Calc.Divide(System.Int64,System.Int64)
  Generating help documentation...

  Building HTML help index file...

  Compiling HTML help file...

  Help folder: M:\_code\random\BasicCalc\Help
  Done.

M:\_code\random\BasicCalc>

You will need to install HTML Help Workshop which you can get from Ghost Docs site.

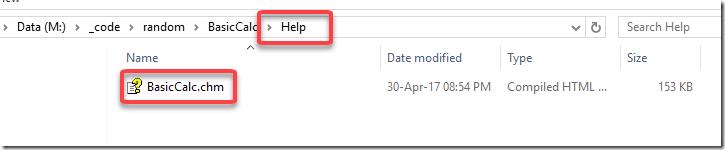

Now that will create a Help folder and inside it a .chm file

File explorer showing the generated .chm help file in the Help folder
File explorer displaying the .chm help file generated by Ghost Doc in the Help folder.

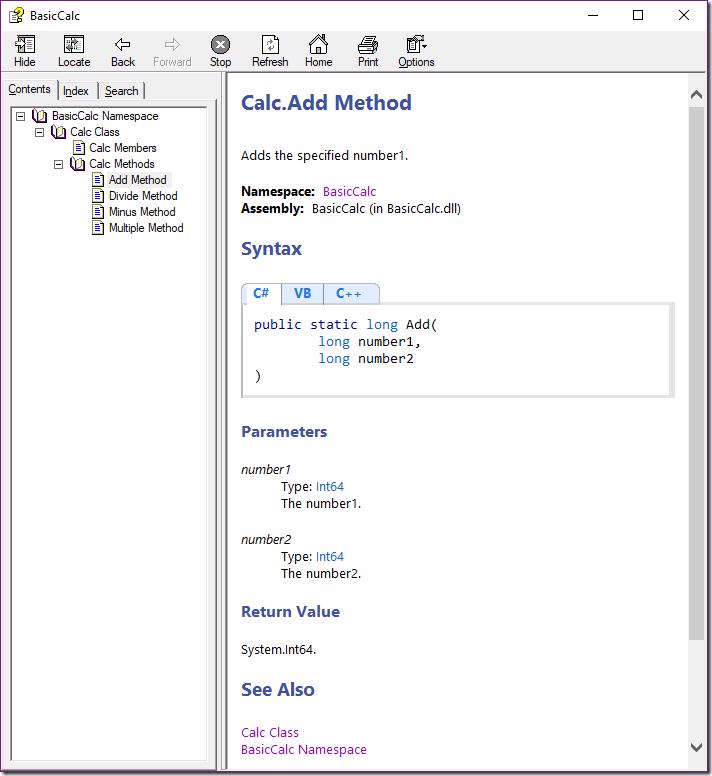

We can open that file and you will notice that all our comments have been formatted nicely into what looks like the old msdn style documentation

Generated CHM help file displaying formatted code comments
The generated CHM help file, showcasing nicely formatted code documentation similar to old MSDN style.

Ghost Doc generates to other formats as well as you would see on their editions compare page 🙂

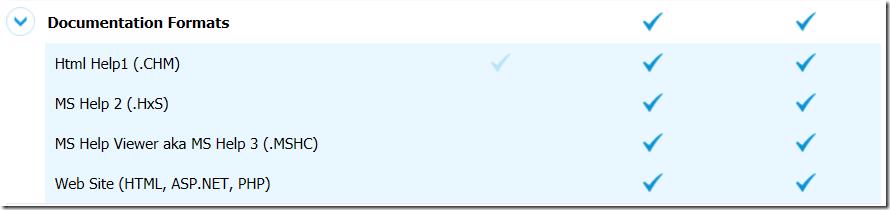

Ghost Doc editions comparison page highlighting different output formats
Ghost Doc editions comparison page, indicating support for various documentation output formats.

We now have a chm that we can distribute with our source 🙂.

#Adding this to our CI

Generating docs from your machine is ok but then you have to remember to do it and what's worse is that you'll have to check that file into source control (Emphasis on the Source in source control 🙂) which wouldn't be great. So naturally as Donovan Brown reminds us "anything you can do on a command line you can do in VSTS or TFS" 😁.

I've gone ahead and setup a standard CI build using the built in Visual Studio template.

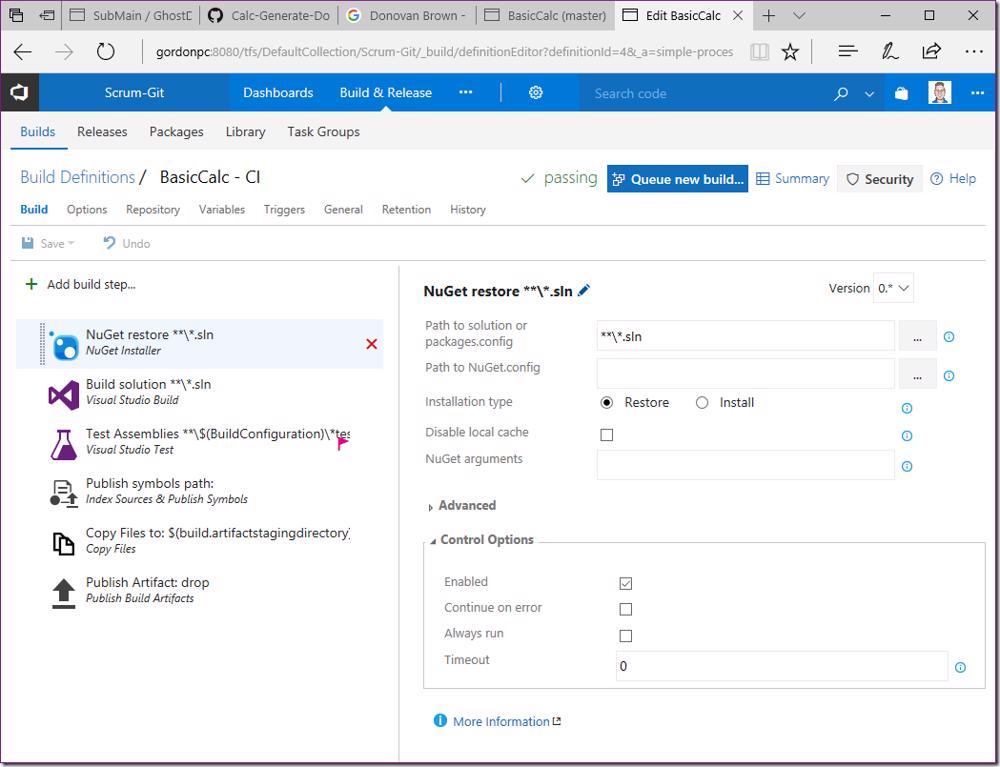

VSTS/TFS build definition using the Visual Studio template
VSTS/TFS build definition configured with the standard Visual Studio template.

If we look at the current build artifacts you will notice that only our class library and pdb is being published

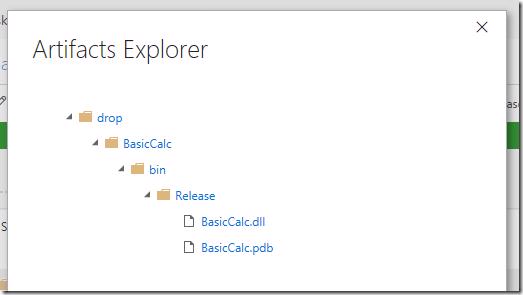

VSTS/TFS build artifacts showing only the class library and PDB files
VSTS/TFS build artifacts, currently publishing only the class library and PDB files.

To add the help file to this we are going to do a couple steps. First add Command Line task

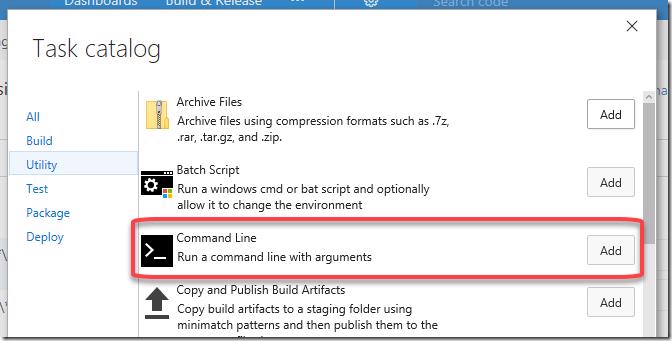

Adding a Command Line task to the VSTS/TFS build definition
Adding a Command Line task to the VSTS/TFS build definition to generate documentation.

and place it before the Copy Files to: $(build.artifactstagingdirectory) task

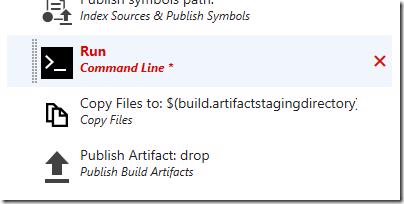

VSTS/TFS build definition with the Command Line task placed before the Copy Files task
VSTS/TFS build definition showing the Command Line task positioned before the Copy Files task.

Now we need to update a couple values for the task

  1. Set the Tool to "C:\Program Files (x86)\SubMain\GhostDoc Enterprise\SubMain.GhostDoc.Cmd.exe"
  2. Set Arguments to "/solution:"BasicCalc.sln" /helpConfiguration:"HelpFile" /projectconfiguration:"$(BuildConfiguration)" /consoledetailed"
    • Note that we are specifying $(BuildConfiguration) as the configuration so docs are generated for the configuration we are specifically building
  3. Check the Fail on Standard Error checkbox

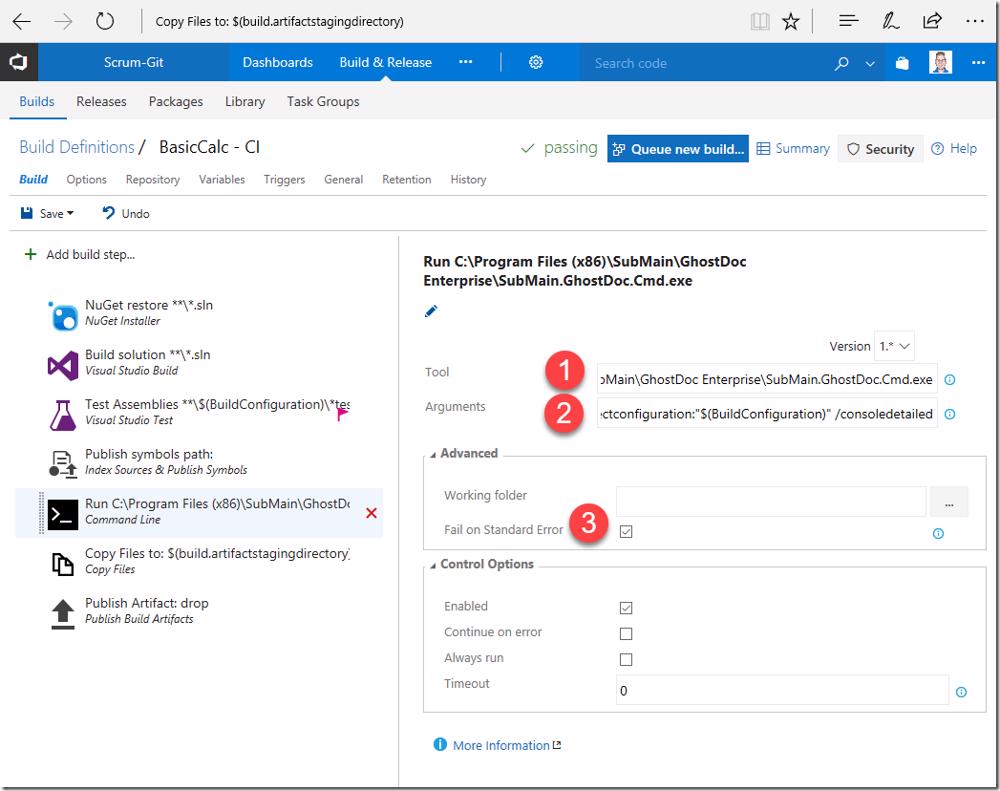

Configuring the Command Line task in VSTS/TFS to run Ghost Doc
Configuring the Command Line task in VSTS/TFS with the Ghost Doc executable path and arguments.

Now add a Copy Files task

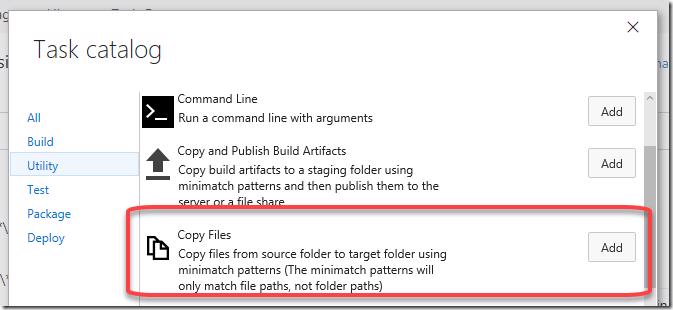

VSTS/TFS build definition showing the addition of a Copy Files task
Adding a Copy Files task to the VSTS/TFS build definition to copy the generated help file.

and add this below the Command Line task

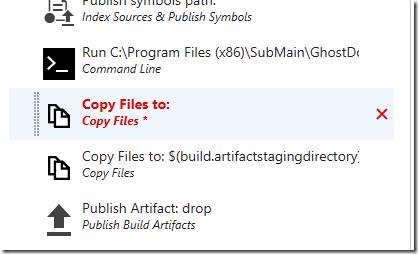

VSTS/TFS build definition showing the configuration of the Copy Files task
Configuring the Copy Files task in VSTS/TFS to copy the help file to the desired location.

and now Set

  1. Source Folder to "$(build.sourcesdirectory)"
  2. Contents to "**\Help\**"
  3. Target Folder to "BasicCalc\bin$(BuildConfiguration)"
  4. And Check the Overwrite checkbox

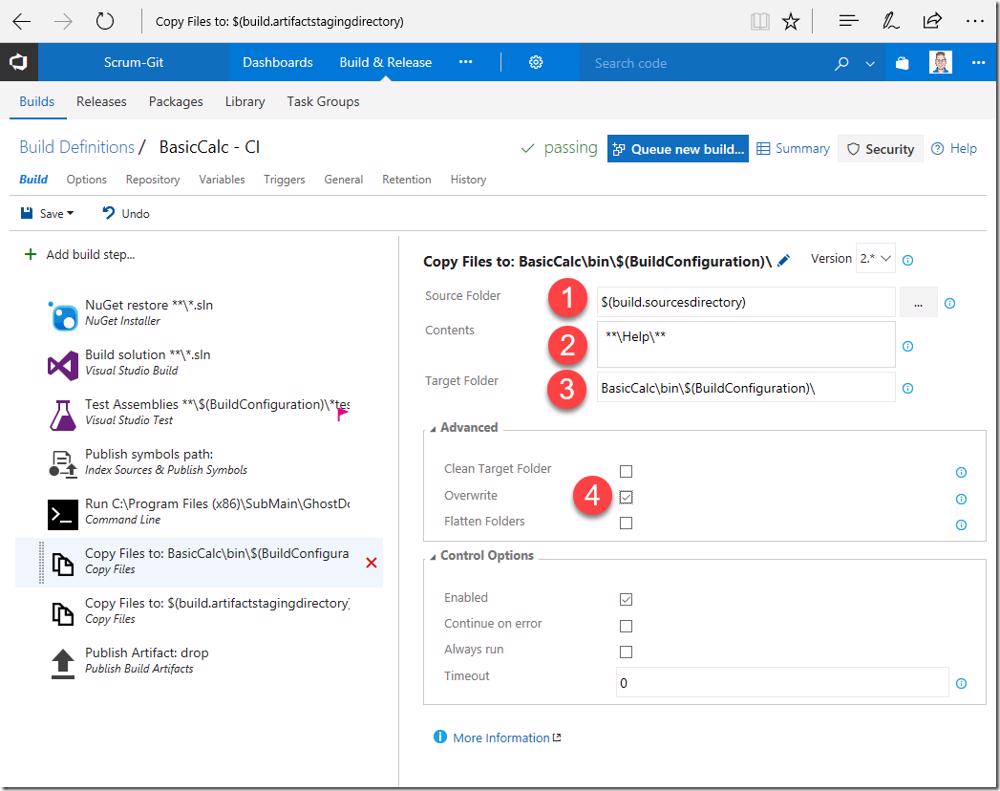

VSTS/TFS build definition showing the final configuration of the build tasks
Final configuration of the VSTS/TFS build definition showing all tasks in place.

If we click Save and run this build you will notice that after the build runs we have our help file in the drop 🙂

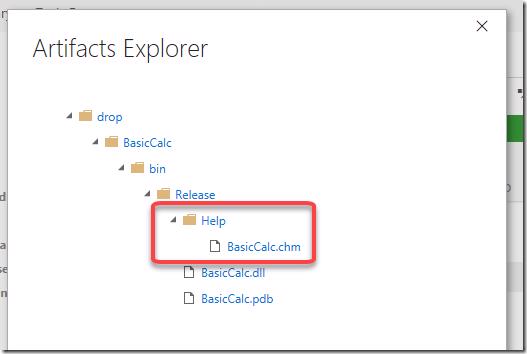

Build output showing the generated help file in the drop location
Build output indicating the successful generation and placement of the help file.

We are not guaranteed to always have up to date source documentation with our build outputs.

#Conclusion

If you write libraries either for internal or external use using the xml comments I'd highly recommend you take a look at Ghost Doc as it makes your life really easy. Also with the very powerful Visual Studio integration developers will be a lot more productive and really have no excuse not to generate meaningful documentation for your class libraries.

Happy documenting 😁

Gordon Beeming
Gordon Beeming

Father • Husband • Triathlete • SSW Solution Architect

Related posts
Apr 23, 2017

Setting up .net core continuous integration build with VSTS/TFS

Jan 07, 2026

Fixing Kiota integer properties generated as UntypedNode

Oct 21, 2025

Creating custom GitHub Copilot chat modes in VS Code
